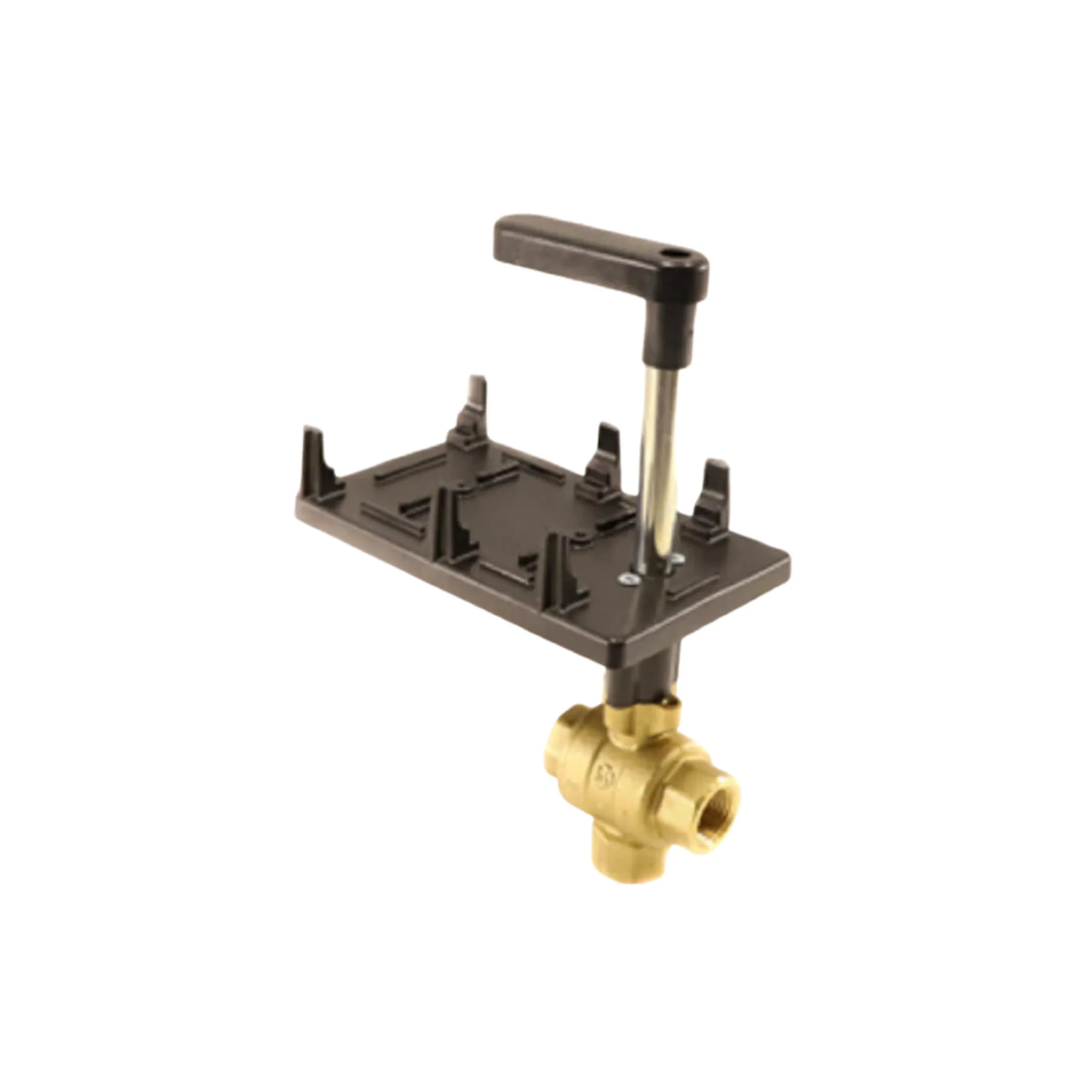

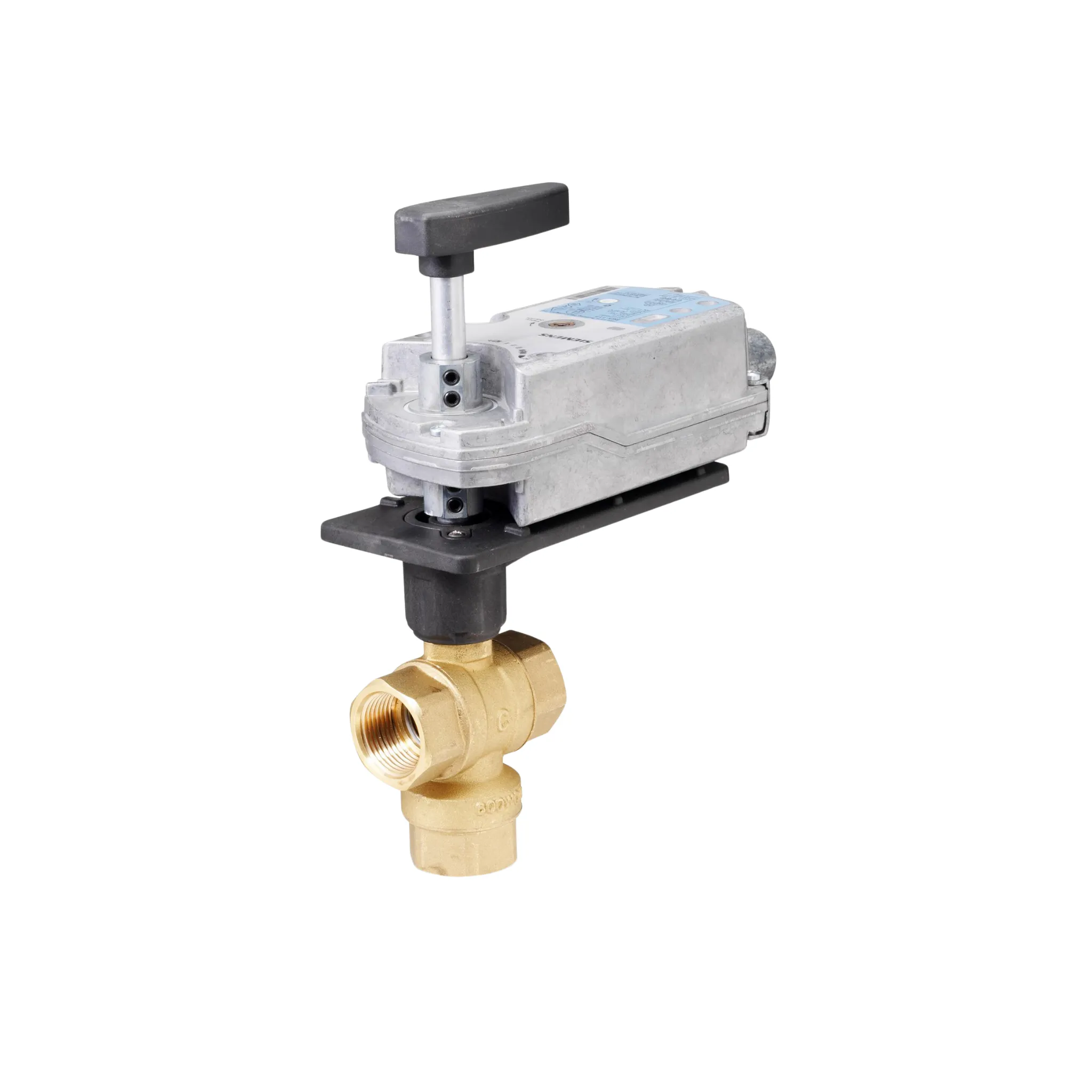

This 599 Series 3-way ball valve with a spring return proportional 0-10v actuator assembly, providing 200 PSI close-off, is used to control hot or chilled water and up to 50% Glycol solution in air handlers, convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1/2-inch valve is 2.5 Cv, with chrome-plated brass ball and brass stem and an operating handle that can manually operate valve in the event of power failure.

Specifications:

Manufacturer: Siemens Building Technology
Manufacturer Part Number: 599-10354
Product Type: Valve
Material: Brass Body with Chrome Plated Brass Ball and Brass Stem
Port Configuration: 3-Way Mixing
Valve Body Style: Ball
Valve Actuator Type: Electronic
Actuation Style: Rotary
Thread Size: 1/2" NPT
Flow Rate: 2.5 Cv
Temperature Range: 35 to 250 Degrees F
Medium: Saturated Steam, Water, Glycol Solutions Up To 50%
Flow Characteristic: Modified Equal Percentage
Dimensions: 10.6" x 8.9" x 4.3"
Weight: 6.0 lb.
